Smart Target is technological solution that uses software and hardware components to accurately track and parse targeting data. Users shoot projectiles at targets that are the focus of a camera that captures their point of impact. A mini computer then uses computer vision to calculate data pertaining to shot accuracy and projectile groupings which is then relayed to a mobile application. The targeting data is displayed to the application user with the option to save the data for future use or erase it. After each round, targets can be replaced or reused to an extent. This solution can be utilized in multiple scenarios from shooting and archery sports to military or police training.

Team Members



Nick Pingree

pingree40@gmail.com

Max Babilona

bebemax95@gmail.com

Screenshots

App

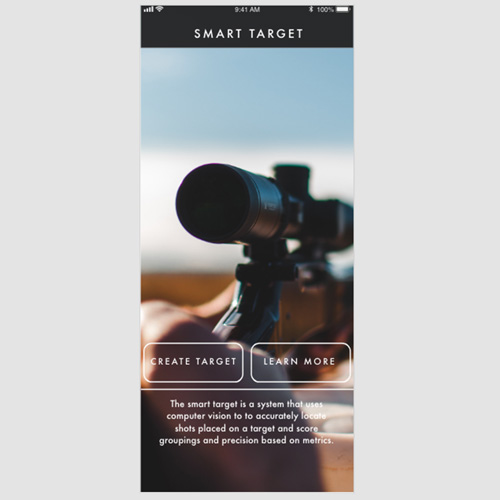

Home Screen


This is the home screen of the mobile app.

Target

Computer Vision

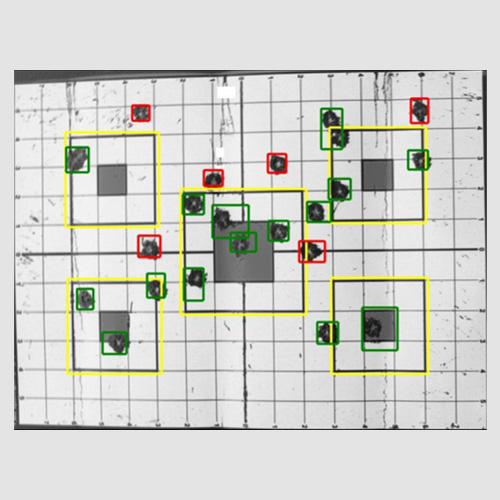

Rendering of the computer vision output that. Computer vision used to decipher between accurate and inaugurate shots. Green shots are considered on-target, and shots that are circled in red are off-target. Yellow borders outline the targets themselves. Once all the on-target shots have been accounted for, further calculations are made to determine precision.

Behind the Scenes

Jeff Salvage

Faculty Advisor
Professor Jeff Salvage

jks29@drexel.edu

cs.drexel.edu/~jsalvage
