Unit 4. -- Approaches to Working with Dimensions

Slowly Changing Dimensions

• Potential changes of dimensions over time in Customer or Product
  • PKs do not change, but the description of the product or customer may change:
    • Customers are changing address, income, marital status, credit level, etc.
    • Sales forces change the names of districts and regions
  • Three Approaches

TYPE ONE: Overwrite the old value in the dimension record.

• Lose the ability to track the old history.
• Use when the old value has no significance
• Correct errors

TYPE TWO: Add an additional dimension record using a new surrogate key value.

• Segment history.
• Track the change in an attribute within a dimension.
• Represents a true "physical" change to the dimension entity.
• Need to use a surrogate key
• May use an effective begin date and an end date

TYPE THREE: Add an "old" field within the original dimension to record the immediate previous attribute value

• Does not segment history.
• Used in "soft" or "tentative" change as in redefinition of product category boundaries.
• Used when we wish to keep tracking history with both old and new values.
• Also add Effective_Date field.
• Rarely used

Rapidly Changing Small Dimensions

• Type 2 technique is still recommended

Large Dimensions

• Two big dimensions with potentially several million records: Customer and Product
• Issues:
  • Support rapid browsing of the unconstrained dimension
  • Support efficient browsing of cross-constrained values
  • Query processing with the large dimension
  • Find and suppress duplicate entries in the dimension
  • Creating additional records to handle the slowly changing dimensions

• Rapidly Changing Monster Dimensions as in Customer
  • Type 2 technique cannot be used b/c of size

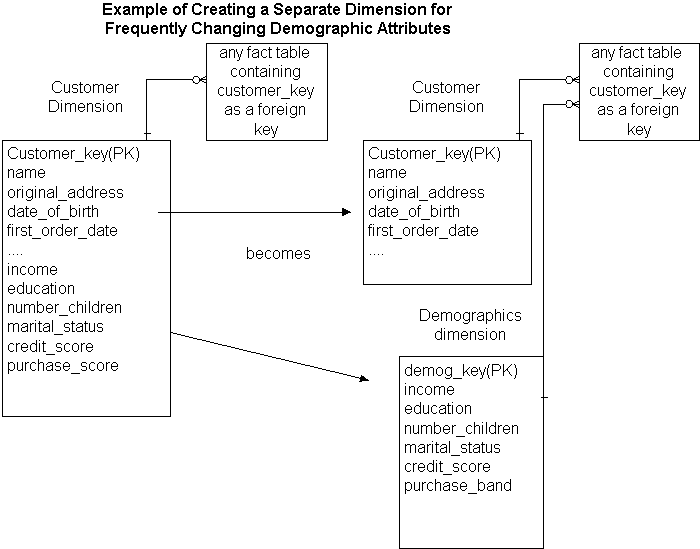

  • Create a separate dimension with frequently changing attributes
    • Numerical data must be converted into banded values
    • Need to have all possible discrete attribute combinations
      • If each of 5 attributes has 10 possible values, then 10⁵ records.
      • Also need a surrogate demographic key
      • Build every possible demographics combination at table creation time

• Disadvantages of separate dimensions
  • Problem of converting into a banded value
  • Could end up with too many combinations
    • Create a second demographic dimension
  • Cross-browsing between customer and demographic gets slow
  • Can associate demographic data only when there is an event
    • Add a demographic key to the customer dimension

Degenerate Dimensions

• When the grain of a fact table is line-item
  • Order number is a degenerated dimension.
  • The PK of the fact table consists of all FKs + degenerated_dimension + line_item.
• Occurs in Order, Invoice, Bill of lading, ticket
• The degenerated dimension key should be the actual production order number.
• The schema with a degenerated dimension is called a multi-star schema.

Junk Dimensions

• A technique for handling left-over attributes from the fact table
• An artificial dimension that contains:
  • A group of random flags taken from a fact table
    • 10 flags: 2¹⁰ = 1024 records
  • An open-ended comment field attached to a fact record
    • Will contain all the distinct comments
    • Needs "No Comment" record in the junk dimension

Foreign Keys, Primary Keys, and Surrogate Keys

• All dimensions must have single attribute meaningless surrogate keys.
  • Do not use the original production keys.
  • A 4-byte integer can support 2 billion positive integers.
  • Avoid smart keys or intelligent keys.

• DATE Keys
  • Also use a surrogate key
  • A SQL DATE is usually 8 bytes (7 bytes in Oracle)
  • It allows us to represent:
  • • I don’t know
    • It hasn’t happened yet
    • Not applicable
  • Time stamp should be a separate field from the Date field.

Additivity of Measures

• Additivity: add the facts along all of the dimensions
• Numerical measures of intensity are not always additive.
  • Ex: Account balance, inventory level
  • They are additive along all the dimensions except time.

1. Fully-additive:

• Can add across any dimensions
• Ex: sales_dollars, cost, qty_sold, margin_dollars

2. Semi-additive:

• Can add across some dimensions, but not all
• Semi-additivity occurs when measures represent levels.
• Semiadditive facts must be averaged across time when used across time.
• Ex: bank_balance, head_counts, invenstory_quantities

. All balances can be added over all accounts for each branch.

. All balances can be added for all accounts for each customer.

. Balances cannot be added over time; we have to divide the sum by #days.

3. Non-additive:

• Can’t add across dimensions
• Percentages (or rates) are non-additive.
• Temperatures are non-additive.
• Ex: margin_rate
• Break down into additive components

(Keep Margin_dollars and Sales_Dollars, instead of Margin_rate)
